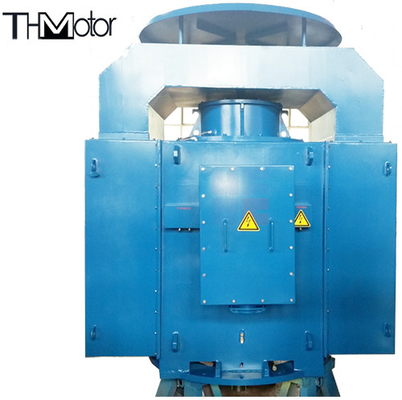

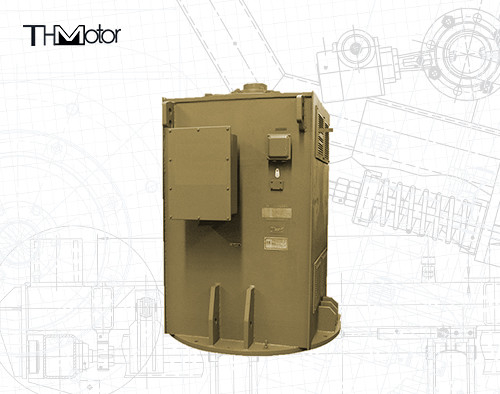

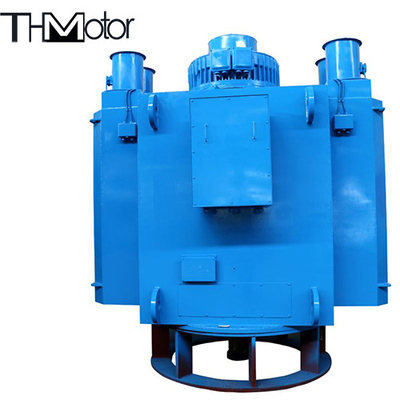

6000v Water Pump Three Phase Asynchronous Motor 12 Poles

6000v Water Pump Three Phase Asynchronous Motor 12 Poles

  • 6000v Water Pump Three Phase Asynchronous Motor 12 Poles
  • 6000v Water Pump Three Phase Asynchronous Motor 12 Poles
  • 6000v Water Pump Three Phase Asynchronous Motor 12 Poles
6000v Water Pump Three Phase Asynchronous Motor 12 Poles
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: YLKS560-2-6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Vertical Three Phase Asynchronous Motor Water Pump Power Plant Circulating Pump Power Range: 220-2800kw
Voltage: 6000v-10000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23,IP44, IP54,IP55 Standard: IEC,GB
Poles: 2,4,6,8,12 Mounting: Vertical
highlight:

6000v Three Phase Asynchronous Motor

,

6000v Water Pump Motor

,

Three Phase Asynchronous Motor 12 Poles

Vertical Three Phase Asynchronous Motor Water Pump Power Plant Circulating Pump

Product overview



YLKK vertical high-voltage motor (frame size 355~1120)  have reached or approached the advanced level in terms of technical performance and economic performance. It has been produced in large quantities and exported to more than 20 countries and regions such as Europe, the United States, Africa and all over the country.


YLKK vertical high-voltage motors are made of sophisticated materials and well-made. They have the advantages of high efficiency and energy saving, low noise, low vibration, reliable operation, and convenient use, installation and maintenance.


The power level, electrical performance, installation dimensions and tolerances of YLKS air-water-cooled vertical high-voltage motors conform to the national standard GB755 and the International Electrotechnical Commission standard IEC34-1.


According to GB4942.1 and IEC34-5 standards, the enclosure protection grades of YLKS air-water-cooled vertical high-voltage motors are IP23, IPW24, IP44, IP54 and IP55 respectively. IP23 motors can be made IP44 (ducted ventilation) according to user requirements. If users need other protection grades, they can be supplied separately.


The cooling method of YLKS air-water-cooled vertical high-voltage motor is IC81W according to GB/T1993 and IEC34-6 standards.
The structure and installation type of the motor are IMV1 (vertical with flange) structure, which complies with the regulations of GB997 and IEC34-7.


Application
Electric motors can be used to drive vertical water pumps and other mechanical equipment, and are used as prime movers in various industrial and mining enterprises such as mining, machinery, petrochemical industries, and power plants.
The basic conditions for the normal operation of the motor:
a. The altitude does not exceed 1000m;
b. The ambient air temperature does not exceed 40°C; the low ambient air temperature is -15°C for motors with rolling bearings; 5°C for motors with sliding bearings;
c. The average relative humidity is 90%, and the average low temperature is not higher than 25℃;
d. The power frequency is 50Hz±1%;
e. YL, YLKK, YLKS type motors can withstand axial thrust of 3 to 60 tons.


Product specifications



Power Range: 1400kw Voltage: 6000v
Product Name: Vertical Three Phase Asynchronous Motor  Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01,IC411,IC611
IP Rate: IP23,IP44, IP54,IP55 Standard: IEC,GB
Poles: 2,4,6,8,12 Mounting: Vertical



 For 6kv voltage/50hz

Frame 355 400 450 500 560 630
Power range kW 220~315 220~560 220~900 280~1400 500~2000 710~2800
Poles 4.6 4.6.8 4.6.8.10.12 4.6.8.10.12 4.6.8.10.12 4.6.8.10.12


For 10kv voltage/ 50hz

Frame 450 500 560 630
Power range kW 315~630 280~1120 315~1600 560~2240
Poles 4.6 4.6.8.10 4.6.8.10.12 4.6.8.10.12


Remark: For the other special rated powers, please contact with us.
6000v Water Pump Three Phase Asynchronous Motor 12 Poles 0

Each series of motors

6000v Water Pump Three Phase Asynchronous Motor 12 Poles 1



Our aftersales service

6000v Water Pump Three Phase Asynchronous Motor 12 Poles 2



Product packaging

6000v Water Pump Three Phase Asynchronous Motor 12 Poles 3



Certifications

6000v Water Pump Three Phase Asynchronous Motor 12 Poles 4
