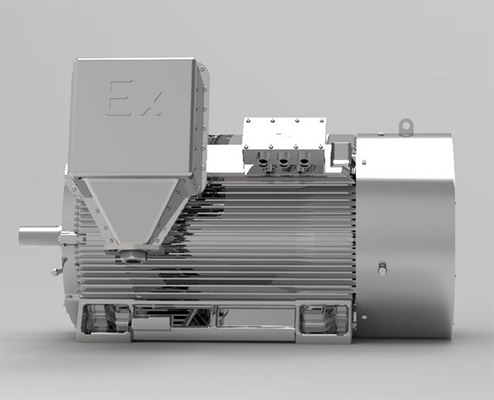

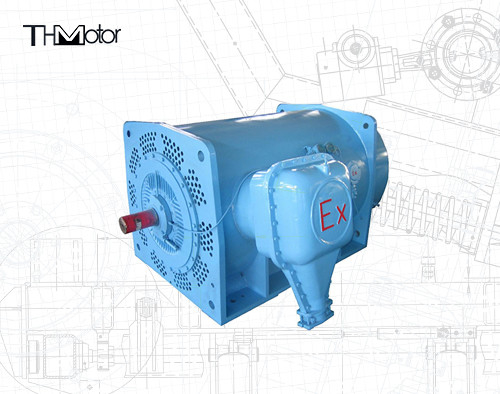

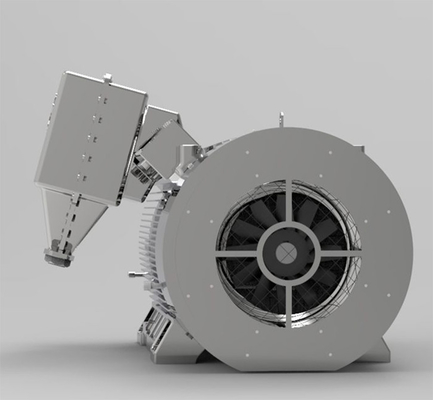

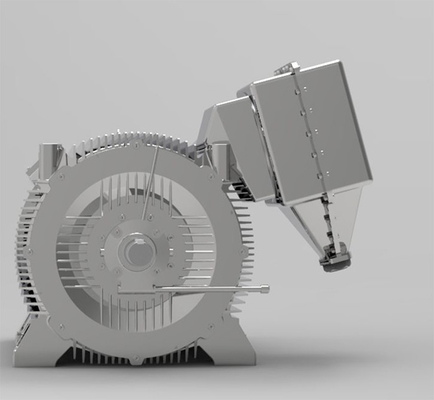

High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm

High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm

  • High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm
  • High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm
  • High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm
  • High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm
High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: YB3-160-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Power Range: 0.18-315kw Voltage: 380v,440V,660V,1140v
Speed Range: 100rpm-3600rpm Frequency: 50hz,60hz
Cooling Method: IC01、IC411、IC611 IP Rate: IP55
Standard: IEC,GB Poles: 2,4,6,8,10
Mounting: B3,B5,B35
Highlight:

High efficiency IE2 Flameproof Electric Motor

,

IE2 asynchronous motor 3 phase

,

asynchronous motor 3 phase 3600rpm

Yb High Voltage Three-Phase Asynchronous Motor,High Efficient Explosion-Proof Motor, Ie3



Product overview



YB series High Voltage Three-phase Asynchronous Motor (frame No. 355-630) is a high efficient explosion-proof motor which is imported high technoledge from German. Apply with this new technique, new material with advanced engineering, our products featuring reliable operating in compact structure with less vibration and less noise, better outdoor applicability, less weight, which meet the national IE3 standard and can be applied in HIGH danger zones that contain explosive gas.



IEC and German standards, which could be used as the auxiliary motor for export equipment and replacement for import motor respectively.



Exd-symbol Exd I Mb, ExdⅡAT4 Gb, ExdⅡBT4 Gb

  • Category I: surface highest temperature no higher than 150℃ (when coal dust may cover the motor surface), no higher than 450℃ (when coal dust will not cover the surface or some protection work has been done to prevent the coal dust accumulation)
  • Category Ⅱ: surface highest temperature no higher than T1(450℃), T2(300℃), T3(200℃), T4(150℃); Terminal box with three or six terminals for rubber jacket cable (plastic cable) and steel cable.
  • Ambient temperature:-15℃~35℃ in coal mine and -15℃~40℃ in plant.
  • High efficiency IE2
  • Rating voltage: 380V,660V,380/660V 50Hz (for Exd-symbol Exd I and frame size 80-355)
  • 660V/1140V 50Hz (for Exd-symbol Exd I and frame size 112-355)
  • 380V, 660V, 380/660V 50Hz & 400V, 415V, 440V, 460V, 480V, 690V 60Hz (for Exd-symbol ExdⅡ)

Product specifications



W-Outdoor light corrosion resistant type WF1-Outdoor medium corrosion resistant type
WF2-Outdoor heavy corrosion resistant type F-Indoor corrosion resistant type
F1-Indoor medium corrosion resistant type F2-Indoor heavy corrosion resistant type
TH-Humid tropics indoor type THW-Humid tropics outdoor type
TA-Dry tropics indoor type TAW-Dry tropics outdoor type

High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm 0



Each series of motors

High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm 1



Our aftersales service

High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm 2



Product packaging

High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm 3



Certifications

High Efficiency IE2 Flameproof Electric Motor Asynchronous 3 Phase 3600rpm 4
