3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611

3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611

  • 3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611
  • 3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611
  • 3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611
  • 3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611
3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: YL560-2-6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Vertical Three Phase Asynchronous Motor Water Pump Power Plant Circulating Pump Power Range: 220-2800kw
Voltage: 6000v-10000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23,IP44, IP54,IP55 Standard: IEC,GB
Poles: 2,4,6,8,12 Mounting: Vertical
highlight:

3600rpm Circulating Pump Motor

,

3600rpm power plant motor

,

power plant motor IC01 IC411 IC611

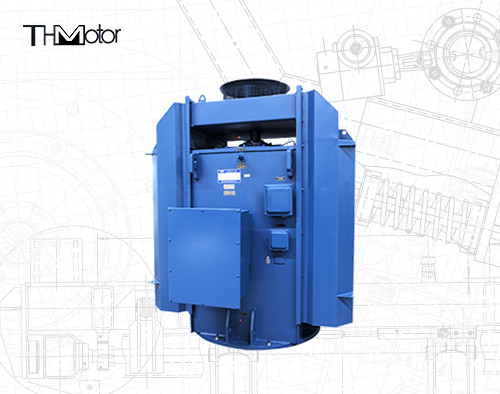

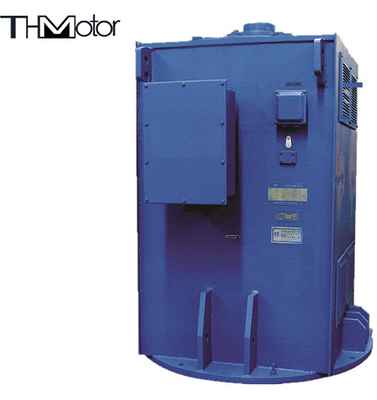

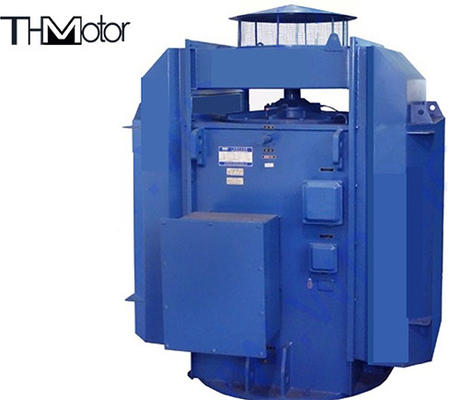

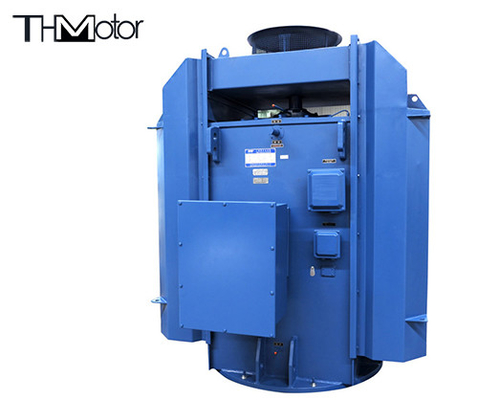

Vertical Three Phase Asynchronous Motor Water Pump Power Plant Circulating Pump



Product overview


The YL Series Vertical Three-Phase Asynchronous Motor is designed and produced with advanced manufacturing technic comprehend from American Westinghouse Electric Corp and German LDW(LLOYD DYNAMOWERKE) ,which can be divided into YLKK and YLKS series to meet different cooling demands.


This series motor can be widely used to drive vertical mounted machines and water pump, such as power plant circulating water pump, condensate pump, and other kinds of water pump station. Motor axial thrust load is optional as clients’ requirement.



Product specifications



Power Range: 1400kw Rated Voltage: 6000v
Product Name: Vertical Asynchronous Motor  Speed: 100rpm-3600rpm
Frequency: 50hz,60hz IC Cooling Method: IC01,IC411,IC611
IP Rate: IP23,IP44, IP54,IP55 Standard: IEC,GB
Poles: 2,4,6,8,12 Mounting: Vertical


 for 6kv voltage/50hz

Frame 355 400 450 500 560 630
Power range kW 220~315 220~560 220~900 280~1400 500~2000 710~2800
Poles 4.6 4.6.8 4.6.8.10.12 4.6.8.10.12 4.6.8.10.12 4.6.8.10.12


10kv voltage/ 50hz

Frame 450 500 560 630
Power range kW 315~630 280~1120 315~1600 560~2240
Poles 4.6 4.6.8.10 4.6.8.10.12 4.6.8.10.12


 Each series of motors

3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611 0



Our aftersales service

3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611 1



Product packaging

3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611 2



Certifications

3600rpm Circulating Pump Power Plant Motor IC01 IC411 IC611 3
