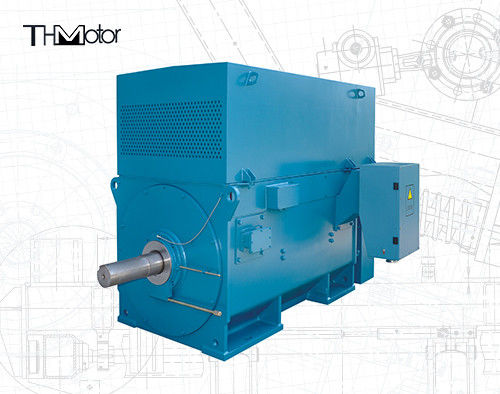

Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55

Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55

Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55
Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55
Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: YKK-500/1250KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Y Series High Voltage Ac Motor Asynchronous Induction Motor Power Range: 400-6000kw
Speed Range: 100rpm-3600rpm Frequency: 50hz,60hz
Cooling Method: IC01、IC411、IC611 IP Rate: IP23, IP54,IP55
Poles: 2,4,6,8,12,16
Highlight:

High Voltage AC Motor 50hz 60hz

,

Asynchronous Induction Motor 50hz 60hz

,

Y Series Asynchronous Induction Motor

Y Series High Voltage AC Motor - Asynchronous Induction Motor
The YKK High Voltage Three-phase Asynchronous Motor (frame No. 355-1120) is manufactured with advanced techniques to deliver high efficiency, low noise, low vibration, and high reliability. These motors are designed for easy installation and maintenance.
Applications
YKK motors are widely used in draught fans, water pumps, compressors, crushers, stock-removing machines, conveying equipment, and other similar industrial machinery. They serve various industries including petroleum, chemical, power plants, coal, metallurgy, transportation, textile manufacturing, medical industry, and grain processing.
Technical Specifications
Product Name Y Series High Voltage AC Motor Asynchronous Induction Motor Power Range 400-6000kW
Voltage 6000V-11000V Speed Range 100-3600 RPM
Frequency 50Hz, 60Hz Cooling Method IC01, IC411, IC611
IP Rating IP23, IP54, IP55 Poles 2, 4, 6, 8, 12, 16
Motor Series
Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55 0
After-Sales Service
Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55 1
Product Packaging
Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55 2
Certifications
Y Series High Voltage AC Motor Asynchronous Induction Motor 400-6000kw 50hz 60hz IP23 IP54 IP55 3

Tag:

squirrel cage electric motor IC611,

3500KW high efficiency ac motor,

high efficiency ac motor IC611
